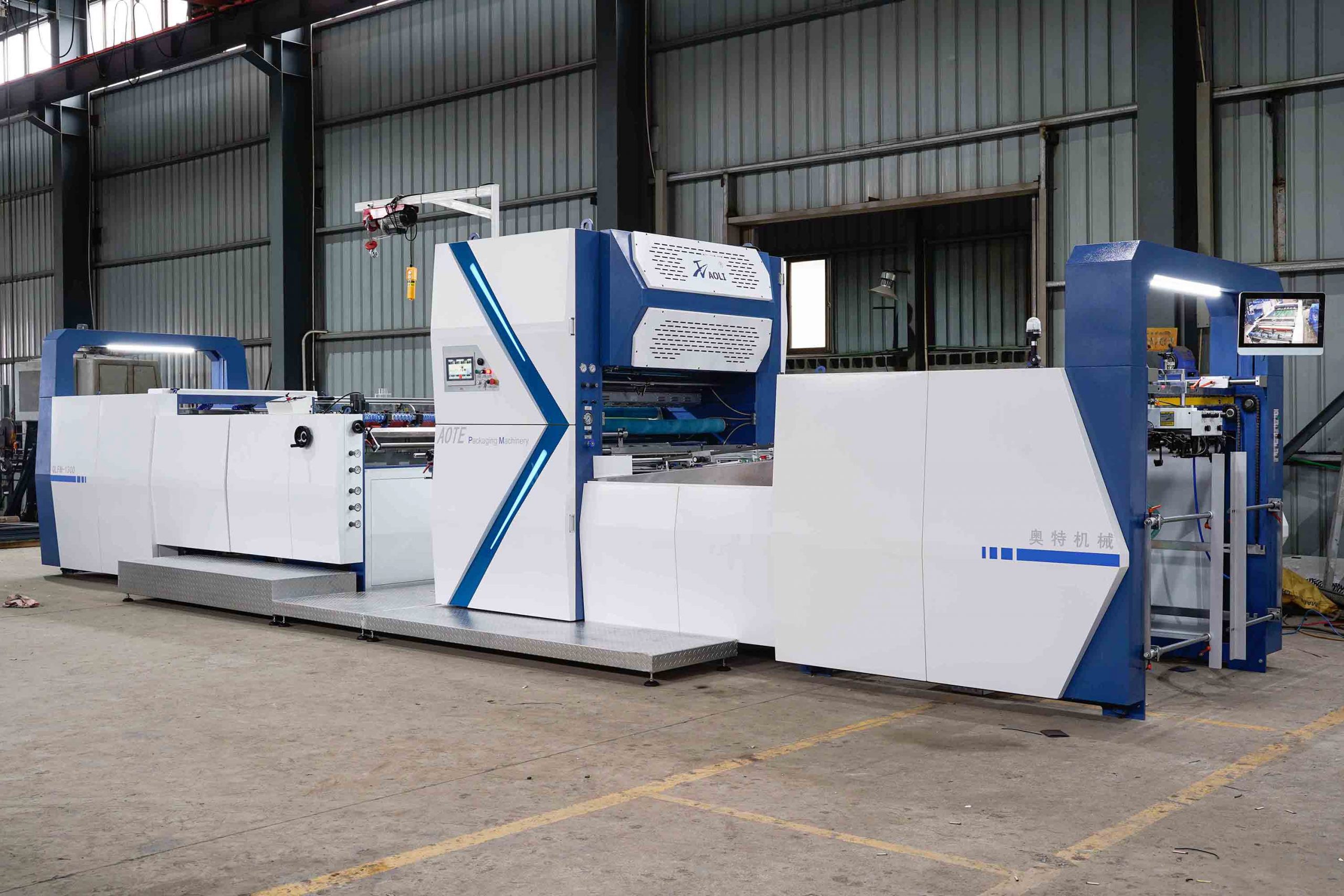

QLFM-1100C Automatic Vertical Laminating Machine (Hot Knife Type)

Introduction

QLFM-1100C fully automatic vertical lamination machine is designed for water based glue and thermal lamination multi-functions. It’s with latest built-in electromagnetic heating device, one-touch start, and automatic stacking board exchanging functions. Features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, touch screen easy to operate.

Configuration & Functions:

1. Automatic High Speed Feeder: Adopt high speed pneumatic offset feeder, speed up to 100m/min. Pre-stacking system can realize non-stop feeding, obviously improving work efficiency.

2. High Accuracy Lap Control: Servo-controlled lap within ±2mm, synchronizes with feeder, high accuracy front lay and pnuematic side lay regulator ensure accurate and stable position.

3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper overlap.

4. Drying And Heating System:The 800mm diameter large heating roller equipped with Electromagnetic Heating Device, at the same time supported with Hot Air Cycle System, can realize high speed booting and heating in 5~10 minutes, 2 times than traditional oil heating device meanwhile save much power consumption.

5. Automatic Hydraulic System: The hydraulic system automatically provides stable and large pressure to ensure high quality of lamination.

6. Man-machine Interface System:Equipped with 10 inch color touch screen, easy and convenient to operate. The operator can view the machine’s working status at any time from the touch screen.

7. Air Shaft and Tension Control System:Adopt air shaft, easy to load film, accurate film position by the graduation of the air shaft. At the same time the intelligent tention system easy to control the tention of film, increase laminating performance.

8. High Accurate Slitting System:Equipped with the latest technology hot knife cutting system in the industry, assisted with disc knife, which can quickly and perfectly cut all kinds of films such as PET, PVC, BOPP, aluminized film and so on.

9. Anti-Curvature System: Adopt corrugrated delivery and anti-curvature system, especially designed for thin paper, avoid paper curvature.

10. Automatic Stacker:Equipped with IR sensor, automatically count the sheets. Three-direction high speed pneumatic stacker can collect the sheets automatically and flat without stopping.

Parameter:

Actual Photo

FAQ

1. What’s your Lead Time?

Regularly within 30 days after payment of deposit, upon actual producing schedule.

2. Packaging?

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.

3. How about After-Sales Service?

We provide 1 year warranty period. During the period, we supply the spare parts in free for replacement in case of any quality problem. And you will enjoy life time technical support by our professional after-sales team.

4. Do you have engineer available for installation, training and test to my factory?

Don’t worry, of course we have. All the machines have been adjusted and tested well in our workshop. But If you require, our engineer will come to your factory for technical support. You just pay for the VISA, round air tickets, salary 80 USD/day, provide food and accommodation upon final confirmation.

5. Any certifications？

Yes all the machines have passed ISO9001 and CE certification. And we have several patents about chain knife, heating roller and powder cleaning.
